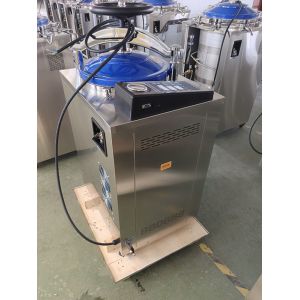

Microcomputer-Controlled Vertical Autoclave with Drying and Automatic Protection System
Purpose-built for demanding medical and scientific applications, this automatic vertical autoclave delivers thorough sterilization and drying. Its integrated steam circulation system guarantees complete processing of surgical instruments, laboratory glassware, and various heat-stable materials.
Main Parameter:
| Model | STV-C35 | STV-C50 | STV-C75 | STV-C100 |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V,50HZ |
| Rated working pressure | 0.22Mpa |
| Rated working temperature | 134℃ |
| Sterilization temperature | 50℃~134℃ |
| Sterilization time setting range | 4~120 min |
| Drying time setting range | 0~240min |
| Chamber volume | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
| Bucket dimension | Ø330×320 | Ø330×460 | Ø380×560 | Ø420×540 |
| Basket dimension(optional) | Ø320×350 | Ø320×240×2 | Ø360×280×2 | Ø410×300×2 |
| Outer dimension | 698×498×940 | 698×498×1110 | 770×570×1185 | 788×588×1255 |
| Packing size (L× W× H )mm | 790×610×1130 | 800×600×1230 | 840×610×1310 | 870×650×1380 |
| Gross/net weight | 125/110KG | 130/112KG | 145/114KG | 156/129KG |
Product Details
Product Features:
Manual Operation with Quick-Release Door
Featuring an ergonomic handwheel and rapid-opening door design for both operational ease and safety.
Internal Steam Distribution System
Maintains uniform heat penetration across the load for thorough and repeatable sterilization results.
304 Stainless Steel Construction
Manufactured from medical-grade stainless steel to resist corrosion and sustain long-term performance.
Combined Sterilization & Drying Cycle
Integrates drying phase within the sterilization process to streamline workflow and save time.
Programmable Microprocessor Management
Enables fully automatic cycles with adjustable parameters to accommodate varied sterilization requirements.
Door Safety Lock Mechanism
Electromechanical interlock prevents access during operation, protecting the operator.
Interactive Digital Control Panel
Clear touchscreen display with live progress tracking and intuitive program selection.
Validation-Compatible Test Connection
Equipped with a standardized port for performance verification and compliance testing.
Auto-Activating Silicone Seal
Self-inflating gasket maintains chamber integrity throughout the cycle without manual intervention.
Comprehensive Safety System
-
Temperature exceedance cutoff
-
Pressure-regulated venting
-
Water insufficiency warning
-
Heating element dry-run prevention
Sterilization Accessories Included
Supplied with stainless steel container for organized and adaptable item loading.
Cycle Completion Alarm & Auto-Cutoff
Audible signal indicates process end while the system powers down automatically.
Intelligent Post-Process Venting
Automatically purges residual steam and air post-sterilization for safe unloading.
Add-On Printing Module
Optional external printer generates verifiable cycle reports for quality assurance and auditing purposes.
Applications of Autoclave with Internal Circulation
- Laboratory & Scientific Research Applications
Compatible with glassware, culture media, surgical instrument sets (when used with appropriate instrument baskets), and biological waste materials (must be handled in compliance with local regulatory guidelines). - Hospitals, Clinics & Healthcare Facilities
Designed for sterilizing surgical instrument kits, dressing sets, and medical textiles to meet clinical sterilization requirements. - Pharmaceutical, Biotech & Food Industries
Suitable for sterilizing production containers, lab utensils, raw materials, and packaging materials (product compatibility must be verified before use).
Why Choose Us?
-
Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.
-
Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.
-
Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.
-
Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.
FAQ
- Q: What are your payment terms?
A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight. - Q: What is the delivery time?
A: Verical autoclave delivery time is about 15 working days for one unit. - Q: What certifications does the sterilizer have?
A: CE, ISO 13485, ISO 9001. - Q: What warranty and after-sales support do you offer for the vertical autoclave?
A: 12-month warranty from installation. We offer:
① Remote technical support via phone, email, and video.
② Operation & maintenance training (manuals, online/on-site).
③ Ample spare parts stock.
24/7 technical response guaranteed. - Q: How do you ship the vertical autoclave?
A: Ship by Sea or Air
① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer. - Q: What trade terms do you support?
A: EXW, FOB, CFR, CIF, and DDP. - Q: Are you a factory or a trading company?
A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
Related Autoclaves:
We offer a comprehensive portfolio of steam sterilization solutions tailored to the diverse demands of hospitals, laboratories, and research institutions.
Our product line encompasses vertical autoclaves with internal steam circulation, gravity displacement vertical models, and vertical pre-vacuum sterilizers to address a variety of sterilization protocols. For space-constrained environments, we provide compact tabletop and benchtop pre-vacuum autoclaves. High-throughput settings are supported by our horizontal chamber and horizontal pre-vacuum autoclaves.
Additionally, our portable pressure steam sterilizers deliver flexibility for mobile or on-site application
s. No matter the challenge, we are committed to providing dependable and efficient sterilization systems for every scenario.
